CNC machine drive system

CNC machine drive system

2011-10-14

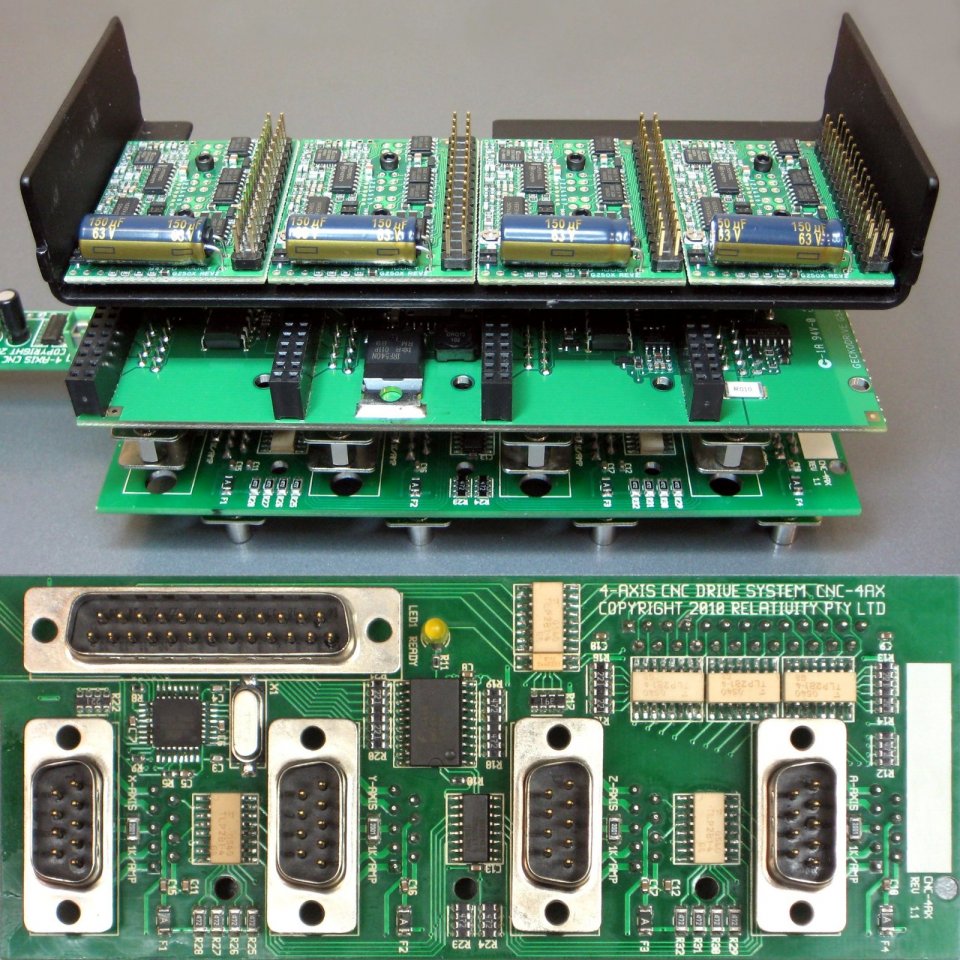

A four-axis drive system for computer numerical control (CNC) machine tools. The supervisory circuit piggy-backs on a commercial motor controller to provide digital position readout and hardware limits which protect the machine from software misconfiguration and programming mistakes.
