Inkjet print head interface

Inkjet print head interface

2005-05-26

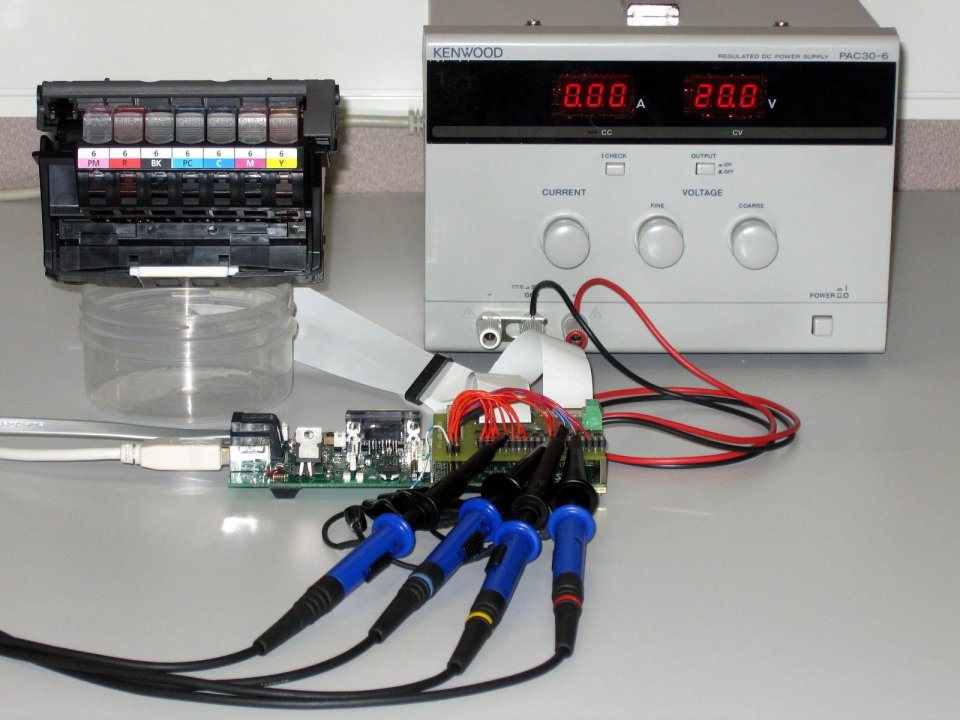

This system was developed to reverse-engineer the electronic interface for a thermal inkjet print head. All of the addressing logic, drive transistors, temperature sensors, microfluidics and heaters for the 7860 nozzles are fabricated on the same silicon substrate.
