Laser scan head prototype

Laser scan head prototype

2013-09-22

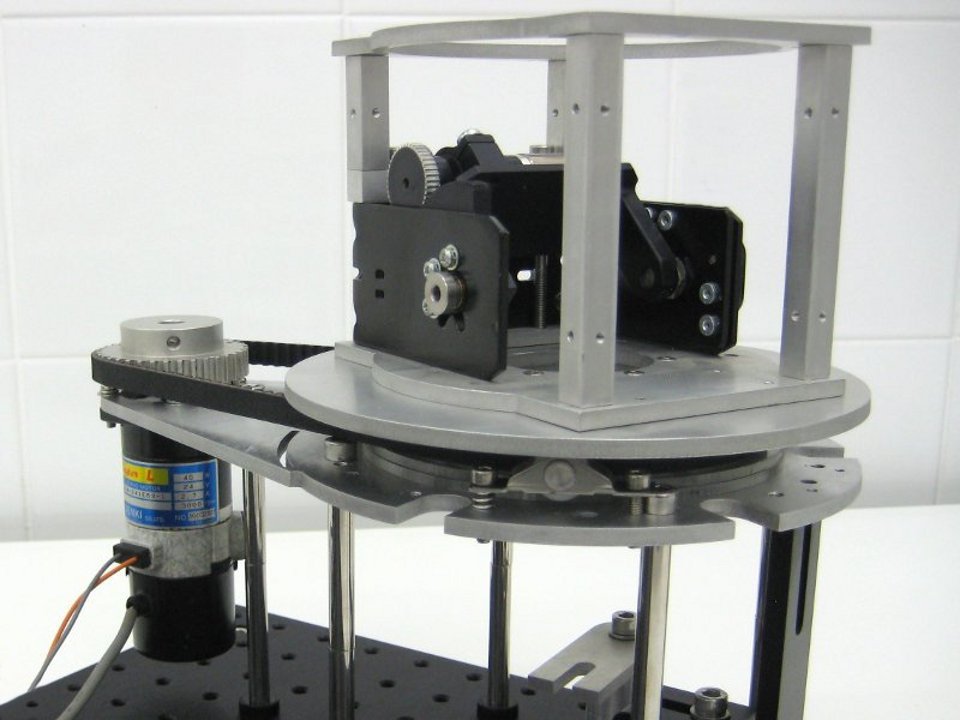

This is a prototype scan head for a new laser projector design. X/Y moving-mirror galvanometer scanners (not shown) will project an image upwards, and the scan head can reflect the image anywhere within the hemisphere or retract the mirror completely for aerial beam effects and cloud projections.
