Laser projector assembly

Laser projector assembly

2010-12-04

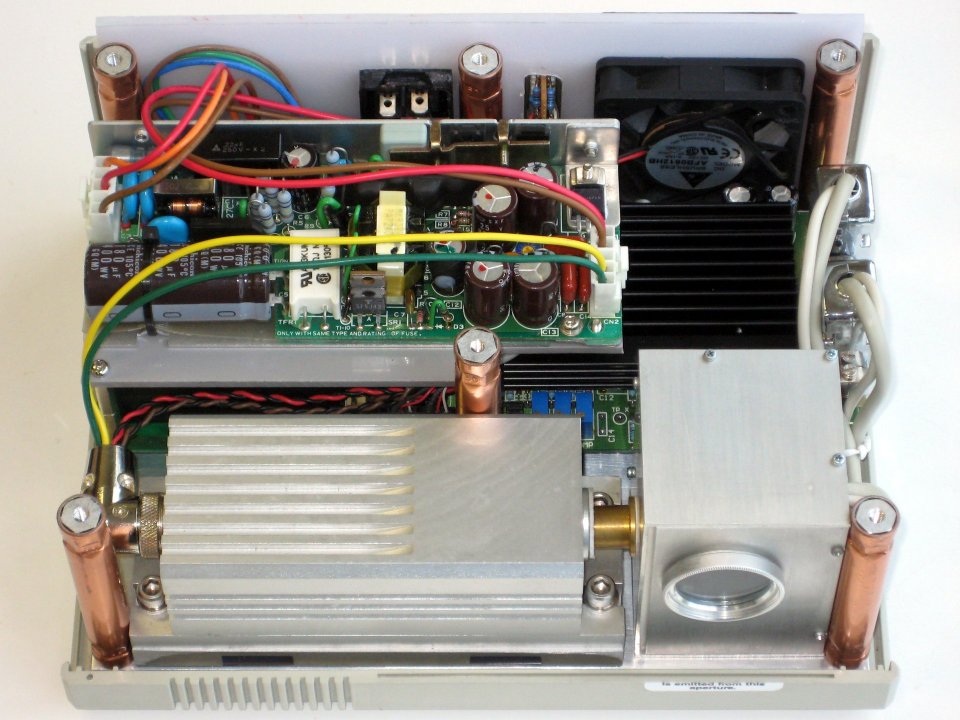

Inside the author's first computer-controlled laser projector. You can see the power supply for the diode module mounted on top of the scanner amplifier board. In the foreground, the diode module is connected to a sealed optics compartment which contains the moving-mirror galvanometer scanners.
